Using Ellisys Bluetooth Analyzer Software with PTS requires PTS 8.5.1 or later.
Note: You must install Ellisys analysis software before installing the remote control plugin. Download Ellisys Bluetooth Analyzer here: https://www.ellisys.com/products/bv1/download.php
To install the plugin:
- Download the plugin https://ellisys.com/better_analysis/bta_remote_api.zip
- Copy the Binaries\Remote Control folder and its content from the unzipped folder to the installation directory, typically C:\Program Files (x86)\Ellisys\...Analyzer\RemoteControl

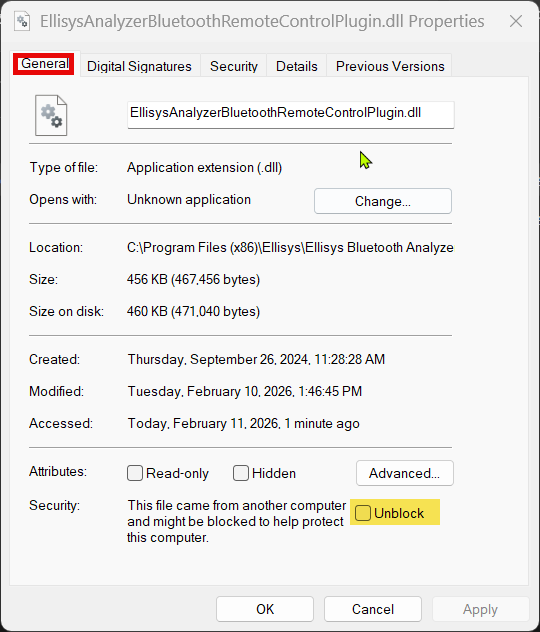

Please note that Windows tends to block files downloaded from the Internet. Please make sure to unblock the files in the Properties as follows:
Starting Bluetooth Packet Analyzer
Once it has been properly installed, the Bluetooth Packet Analyzer will start automatically with PTS. If you have multiple instances of PTS running on a single computer, only the first instance launched will connect to the Bluetooth Packet Analyzer.
To select Bluetooth Packet Analyzer
Go to File > Application Settings > Sniffer and select the packet analyzer that you have installed.
